Built for Expansion

Specifications


Print quality, unlock complex geometries.

Designed for companies that want to get to high standard 3D Printing quickly, simply, with dedicated cementitious material and for an affordable price.


Features

1K

2K

3K+

  • General data :

    Inlet diameter : DN32
    Outlet diameter : 15 - 50 mm
    Dimensions : 1200 x 370 x 340 mm
    Net weight (empty) : 50 kg

    Concrete dosing :

    Flow rate : 0.2-7.0 L/min
    Rated torque : 36 N.m
    Max. granulometry : 3 mm

    Electrical connections:

    Main frequency : 50 Hz
    Rated voltage: 1-phase 230 V AC
    Rated active power : 2.9 kW
    Max. current : 16A
    Average power : 0.5 kW

  • bubble_6700.png

    ABB - IRB 6600 to IRB 8700

    Power : 200-600 V - 50-60 Hz - 0,58 kW
    Options : on track, arm extension, vertical pillar.

  • Mecanical specifications

    Max flow rate : 11 L/min
    Max. pressure : 30 bars
    Capacity : 90 L
    Dimensions : 1600 x 800 x 1200 mm
    Net weight (empty) : 150 kg

    Electrical connections

    Main frequency : 50 Hz
    Rated voltage: 1-phase 230 V AC
    Rated active power : 3.3 kW
    Max. current : 16 A
    Average power : 1.1 kW

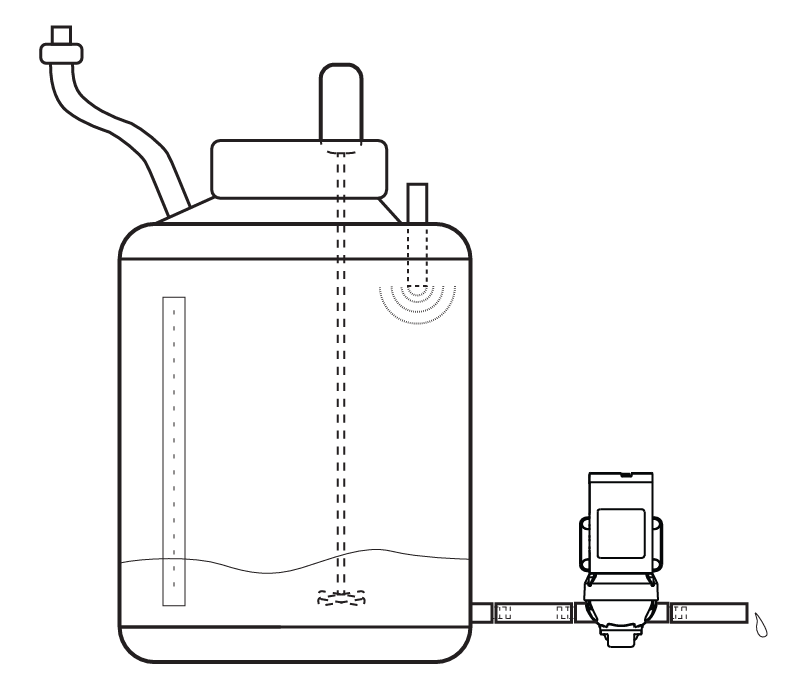

  • Admixture feeding (x2) :

    Max. input pressure : 3.4 bars
    Max. flow rate : 7.6 L/min

    Admixture dosing (x2) :

    Max. input pressure : 9 bars
    Flow rate : 11-275 mL/min

1K

2K

3K+

1K
2K
3K+

Productivity

Dynamic speed

✓
✓
✓

Dynamic flow

✓

Building rate

slow
✓ (fast)
✓✓ (very fast)

Quality & Robustness

Uniform printing quality

good for high standard mix
very good for high water
best result

Variation adaptability (material, temperature)

limited
✓ (good)
✓✓ (optimal)

Low water content mix compatible

✓ (only with high rheological control)
✓

Options

Stop-and-go

✓

Dynamic colorization

✓
1K
2K
3K+

Productivity

Dynamic speed

✓
✓
✓

Dynamic flow

✓

Building rate

slow
✓ (fast)
✓✓ (very fast)

Quality

Uniform printing quality

good for high standard mix
very good for high water
best result

Variation adaptability

limited
✓ (good)
✓✓ (optimal)

Mix compatibility

✓ (only with high control)
✓

Options

Stop-and-go

✓

Dynamic colorization

✓
1K
2K
3K+

Productivity

Dynamic speed

✓
✓
✓

Dynamic flow

✓

Building rate

slow
✓ (fast)
✓✓ (very fast)

Quality

Uniform printing quality

good for high standard mix
very good for high water
best result

Variation adaptability

limited
✓ (good)
✓✓ (optimal)

Mix compatibility

✓ (only with high control)
✓

Options

Stop-and-go

✓

Dynamic colorization

✓
Tableau comparatif 1K_2K_3K pour site web.png
configurator2 (2).png

* available for XtreeE verified partners only

Unlock the Future of Creation with Your Own 3D Printer

​

Get a personalized quote today and start printing your vision tomorrow. Contact our sales team now for expert advice and an unbeatable offer.
